Technical Details

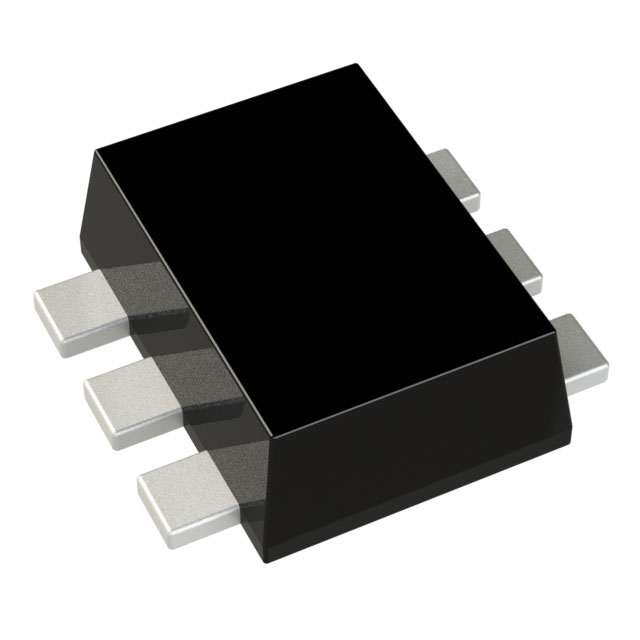

• Package / Case SOT-563, SOT-666
• Mounting Type Surface Mount
• Configuration 2 N-Channel (Dual)
• Operating Temperature -55°C ~ 150°C (TJ)
• Technology MOSFET (Metal Oxide)
• Power - Max 500mW (Ta)
• Drain to Source Voltage (Vdss) 20V
• Current - Continuous Drain (Id) @ 25°C 920mA (Ta)
• Input Capacitance (Ciss) (Max) @ Vds 42pF @ 16V
• Rds On (Max) @ Id, Vgs 450mOhm @ 600mA, 4.5V
• Gate Charge (Qg) (Max) @ Vgs 0.6nC @ 4.5V
• Vgs(th) (Max) @ Id 1V @ 250µA
• Supplier Device Package SOT-563
• Grade Automotive
• Qualification AEC-Q101
