Technical Details

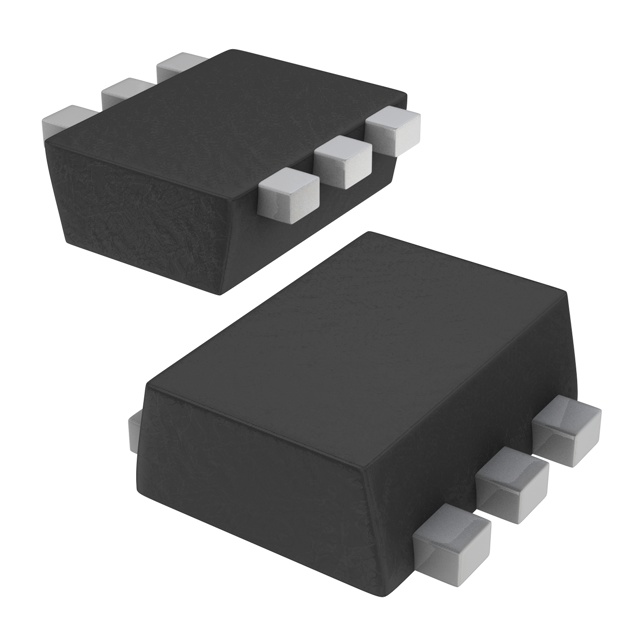

• Package / Case SOT-563, SOT-666
• Mounting Type Surface Mount
• Configuration 2 N-Channel (Dual)
• Operating Temperature -55°C ~ 150°C (TJ)
• Technology MOSFET (Metal Oxide)
• Power - Max 330mW (Ta), 1.09W (Tc)
• Drain to Source Voltage (Vdss) 20V
• Current - Continuous Drain (Id) @ 25°C 800mA (Ta)
• Input Capacitance (Ciss) (Max) @ Vds 83pF @ 10V
• Rds On (Max) @ Id, Vgs 380mOhm @ 500mA, 4.5V
• Gate Charge (Qg) (Max) @ Vgs 0.68nC @ 4.5V
• Vgs(th) (Max) @ Id 950mV @ 250µA
• Supplier Device Package SOT-666
• Grade Automotive
• Qualification AEC-Q101
