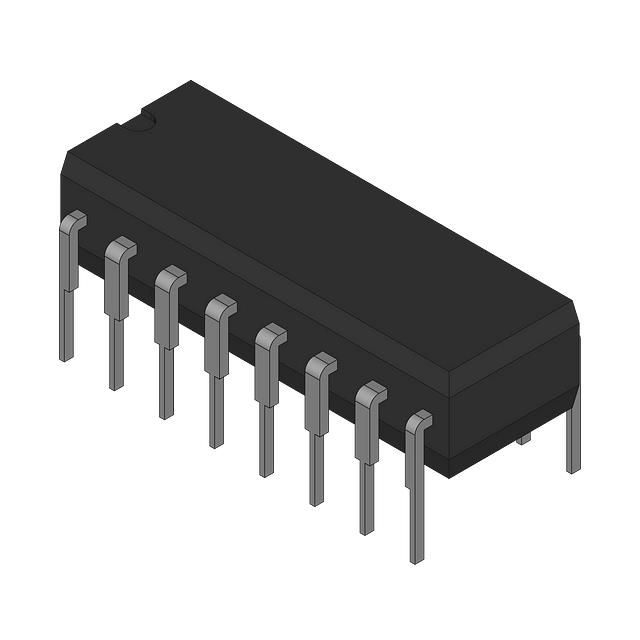

- Product Model SN74LS253N
- Brand Motorola
- RoHS No
- Description SN74LS253 DUAL 4-LINE TO 1-LINE
- Classification Signal Switches, Multiplexers, Decoders
-
PDF
Inventory:16791
Technical Details
- Package / Case 16-DIP (0.300", 7.62mm)
- Mounting Type Through Hole
- Circuit 2 x 4:1
- Type Multiplexer
- Operating Temperature 0°C ~ 70°C
- Voltage - Supply 4.75V ~ 5.25V
- Independent Circuits 1
- Current - Output High, Low 2.6mA, 8mA
- Voltage Supply Source Single Supply
- Supplier Device Package 16-PDIP
