Technical Details

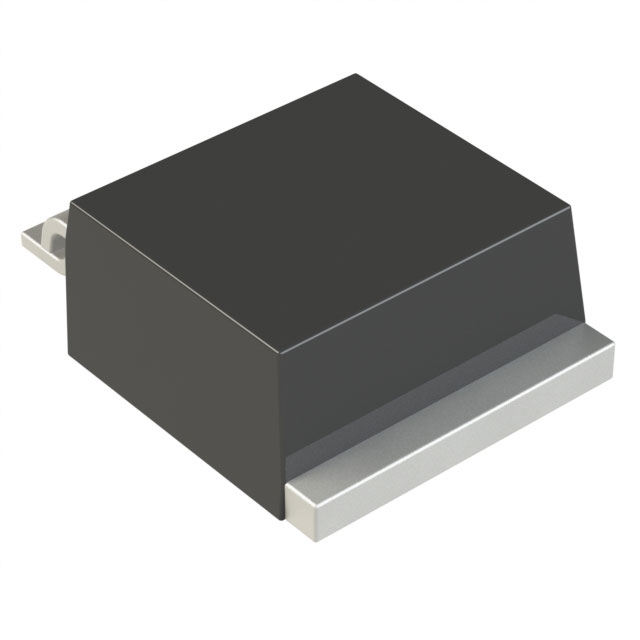

• Package / Case TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
• Mounting Type Surface Mount
• Triac Type Alternistor - Snubberless
• Configuration Single
• Operating Temperature -40°C ~ 150°C (TJ)
• Current - Hold (Ih) (Max) 60 mA
• Current - Gate Trigger (Igt) (Max) 35 mA
• Current - Non Rep. Surge 50, 60Hz (Itsm) 290A, 350A
• Voltage - Gate Trigger (Vgt) (Max) 1 V
• Supplier Device Package TO-263 (D2PAK)
• Current - On State (It (RMS)) (Max) 30 A
• Voltage - Off State 800 V
