Technical Details

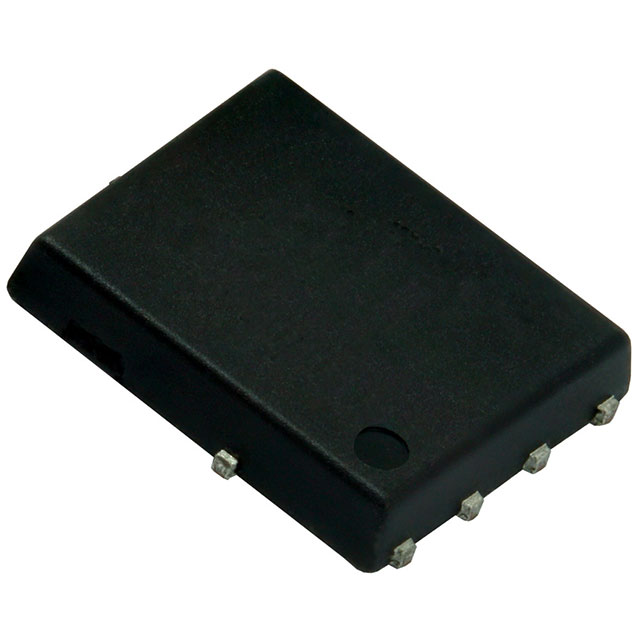

• Package / Case 8-PowerVDFN
• Mounting Type Surface Mount
• Operating Temperature 175°C
• Technology MOSFET (Metal Oxide)
• FET Type N-Channel
• Current - Continuous Drain (Id) @ 25°C 120A (Tc)
• Rds On (Max) @ Id, Vgs 2.43mOhm @ 50A, 10V
• Power Dissipation (Max) 3W (Ta), 210W (Tc)
• Vgs(th) (Max) @ Id 3.5V @ 1mA
• Supplier Device Package 8-SOP Advance (5x5)
• Drive Voltage (Max Rds On, Min Rds On) 6V, 10V
• Vgs (Max) ±20V
• Drain to Source Voltage (Vdss) 80 V
• Gate Charge (Qg) (Max) @ Vgs 87 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds 8300 pF @ 40 V
• ECCN EAR99
• HTSUS 8541.29.0095
• Moisture Sensitivity Level (MSL) 1 (Unlimited)
